Elastic Agent Builder - 🚄 LiteLLM Agent Platform

The Elastic Agent Builder runtime connects LAP to an existing Elastic Agent Builder agent. LAP stores a local agent record, binds it to an Elastic agent ID, and sends prompts through the Kibana Agent Builder API.

How it works

Unlike the Docker Compose runtimes (opencode, deepagents, hermes), the Elastic runtime does not start local containers. It:

Uses the built-in elastic_agent_builder runtime
Requires an existing Elastic Agent Builder agent ID
Sends turns to Elastic’s /api/agent_builder/converse/async endpoint
Can optionally target an Elastic space or connector

Prerequisites

LiteLLM Agent Platform running
Elastic API key
Kibana base URL
Existing Elastic Agent Builder agent ID

1. Add Elastic runtime credentials

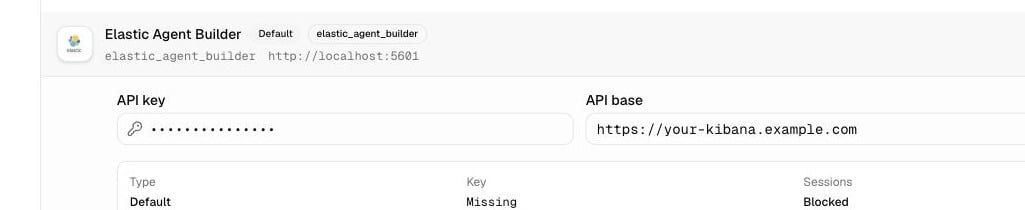

Open Agent Runtimes, expand Elastic Agent Builder, paste your Elastic API key and Kibana base URL, then click Connect.

Elastic Agent Builder runtime credential form

Or via the API:

curl -X PUT $LAP_URL/api/agent-runtimes/elastic_agent_builder/credentials \
  -H "Authorization: Bearer $MASTER_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "api_key": "<your-elastic-api-key>",
    "api_base": "https://your-kibana.example.com"
  }'

2. Create an agent

In the UI, create a new agent and choose the Elastic Agent Builder runtime once the runtime credentials are connected. The current UI handles the LAP agent fields. The Elastic-specific binding still lives in the agent config, so use the API when you need to bind an existing Elastic Agent Builder agent ID:

curl -X POST $LAP_URL/api/agents \
  -H "Authorization: Bearer $MASTER_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "name": "my-elastic-agent",
    "owner_id": "local-user",
    "runtime": "elastic_agent_builder",
    "model": "claude-opus-4-5",
    "system": "You are a helpful assistant.",
    "config": {
      "elastic_agent_id": "<elastic-agent-builder-agent-id>",
      "elastic_space_id": "default"
    }
  }'

3. Start a session

SESSION=$(curl -s -X POST $LAP_URL/session \
  -H "Authorization: Bearer $MASTER_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "runtime": "elastic_agent_builder",
    "agent_id": "<agent-id>",
    "prompt": "Analyze the error logs and suggest fixes."
  }' | jq -r .id)

4. Stream events

curl -N "$LAP_URL/v1/sessions/$SESSION/events/stream" \
  -H "Authorization: Bearer $MASTER_KEY"

Memory across sessions

Store provider-specific binding options in the agent config. You can patch them later:

curl -X PATCH $LAP_URL/api/agents/<agent-id> \
  -H "Authorization: Bearer $MASTER_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "config": {
      "elastic_agent_id": "<elastic-agent-builder-agent-id>",
      "elastic_space_id": "default",
      "elastic_connector_id": "<optional-connector-id>"
    }
  }'

Comparison: Elastic vs Docker Compose runtimes

	Elastic	OpenCode / Deep Agents / Hermes
Runtime ID	`elastic_agent_builder`	`local-opencode`, `local-deepagents`, `local-hermes`
Backend	Existing Elastic Agent Builder agent	Local template service
Setup	Save Elastic credentials and bind `elastic_agent_id`	`docker compose --profile <name> up`
Best for	Existing Elastic Agent Builder workflows	Local dev, demos
